Details

Alternatives

Details

Technical Sheetpdf

Code product

2458931

Material

AISI 304 stainless steel

Texture

Satin

Hood type

Built-in suction hood

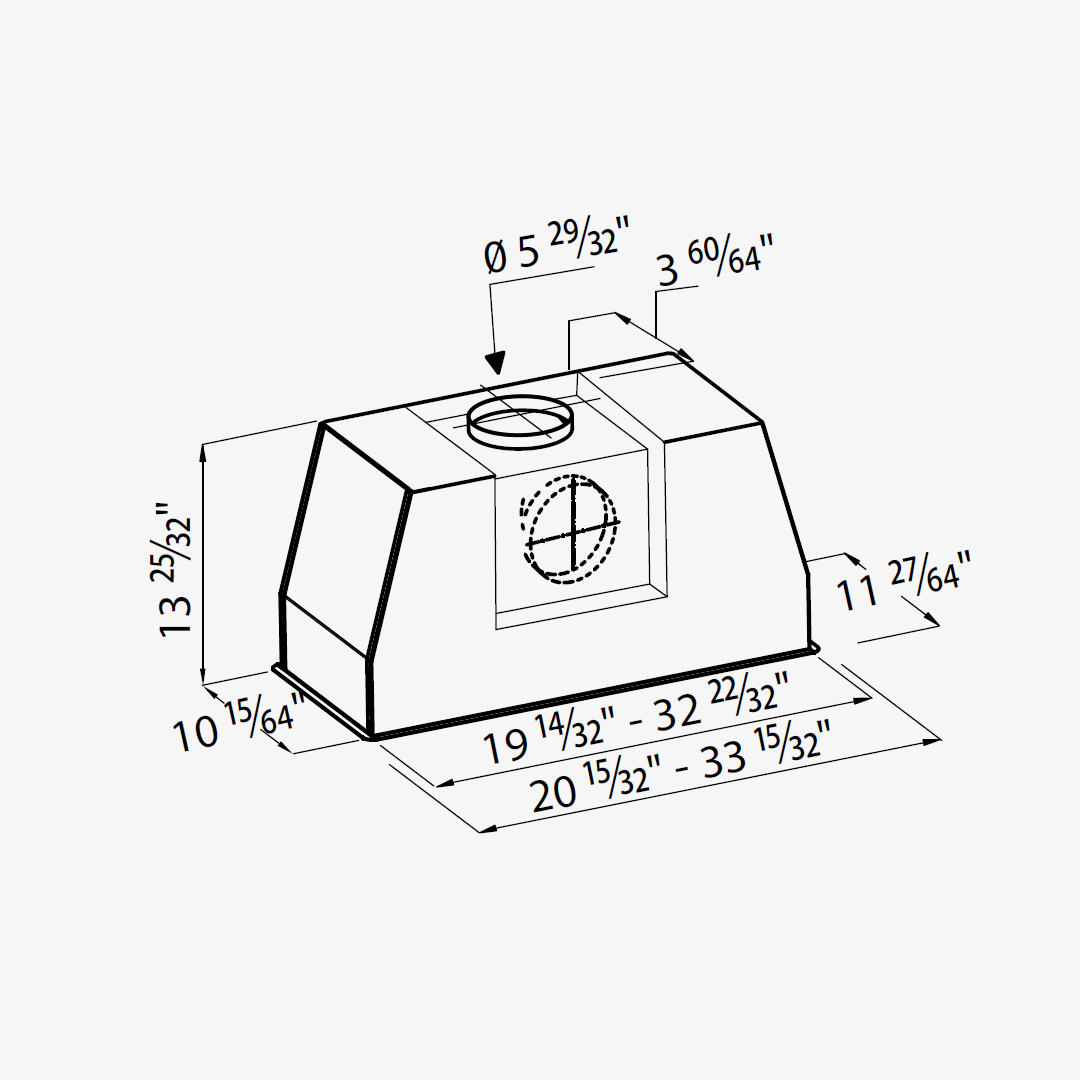

Dimensions

2458 921 (33"): 32^15/32" x 11^27/64" x 13^25/32"
2458 931 (20"): 20^15/32" x 11^27/64" x 13^25/32"

Cut out

2458 921 (33"): 32^7/8" x 10^14/32"
2458 931 (20"): 19^19/32" x 10^14/32"

Control type

Button panel

Speeed

4 speed

Grease filters

Commercial style baffle

Charcoal filters

Optional

Lighting

2458 921 (33") - 10.5W Led Bar 4,200°K
2458 931 (20") - 6.5W Led Bar 4,200°K

Delay off timer

Yes

Light switch

Yes

Extractable oil collector

Yes

Motor

Air flow rate

600 CFM

Pressure

650 Pa

Noise level

50 dBA

Electrical requirements

120VAC – 60Hz

Max Amp usage, power rating

Accessories

(x2) 9700 721 - Carbon filter kit

Certifications

CSA Certified for US & Canada

Alternatives

Hood Quadra
2458 921

Quadra Hood 27.5"2458 911

Hood Quadra 32″2458 901

Quadra

Hood Quadra

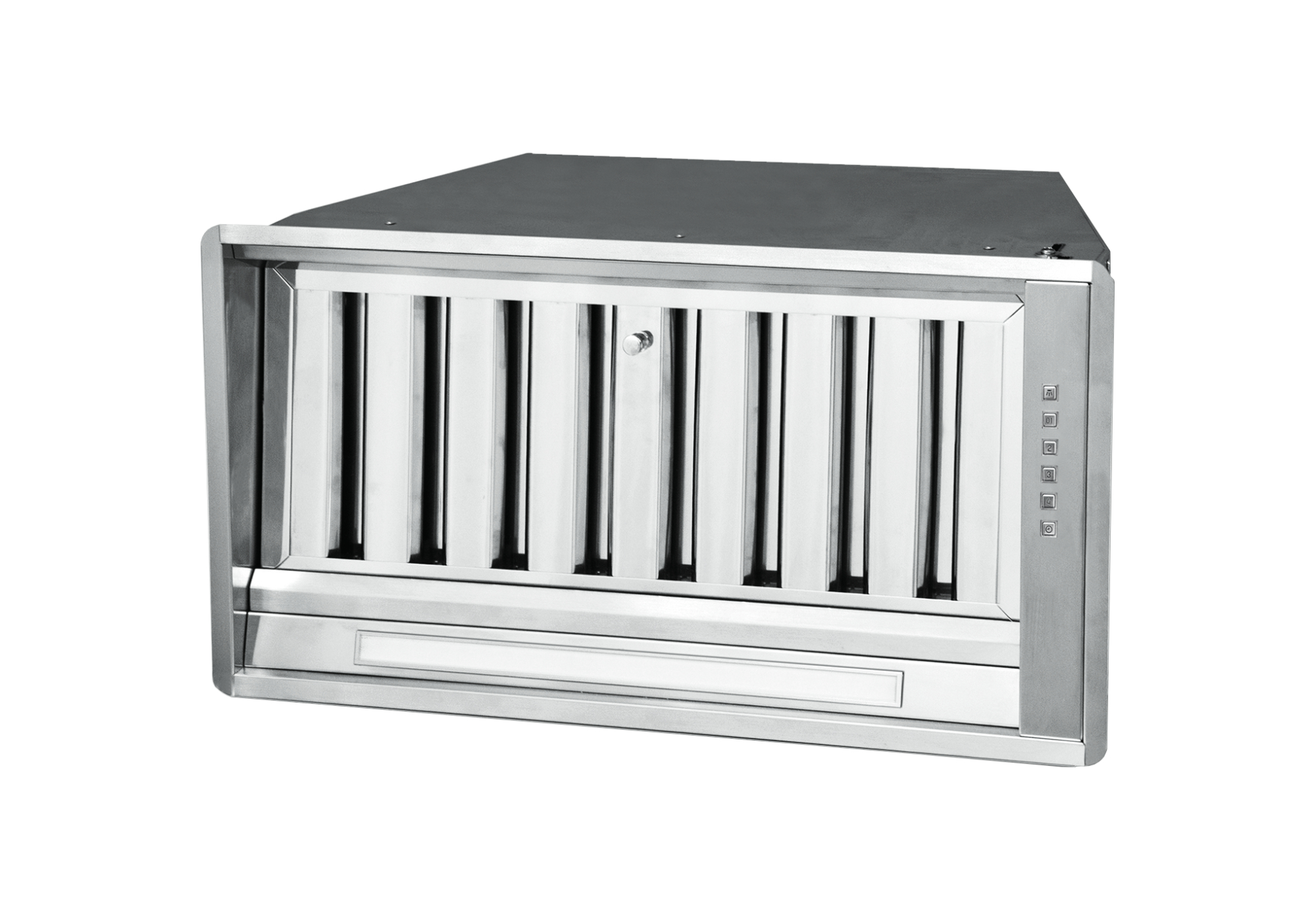

Name: Hood Quadra
Brand: Quadra
SKU: 2458 931

20"

2458 931Wall-mounted suction hood
Satin finish stainless steel
4 speed
EBM Dual motor
