OVEN SPECIFICATIONS
Oven typeMultifunction Pyrolitic Oven
Temperature controlElectronic
Commands2 knobs / 6 touch keys
Cavity
Cavity finishDark gray pyrolitic enamel
LightingTriple asimmetrical halogen (20W) lighting
Broil upper heating element3,500 W (240 V)
Upper aux element1,032 W (240 V)
Concealed bake lower heating element3,000 W (240 V)
Convection element2 x 1,300 W (240 V)
Door
Door Glasses4 heat resistant glasses
HingesHeavy duty Steady Tilt
HandleSatin finish Stainless steel handle
Special features
Cleaning functionPyrolitic self clean
Preset/last uesd temperature memoryYes
Preheat bar (25%, 50%, 75%, 100%)Yes
Automatic fast preheatYes
SafetyKeyboard lock, Child door lock
Delivered accessories
Technical Specifications
Electric supply120/240VAC – 60Hz // 120/208VAC – 60Hz
Max Amp usage, power rating (240V,60Hz)16.9 A – 3.84 Kw
Max Amp usage, power rating (208V,60Hz)17.5 A – 3.54 Kw
CertificationUS & CA (ETL)
Cooking FunctionsPyrolitic Sel Clean with automatic door lock, Dual convection Bake, convection Broil, Convection Roast, Lower Convection (Pizza function), Bake, Broil, Delicate cooking, Defrost, Proof warm, Keep warm (warm plus), Light, Fast preheating
RANGETOP SPECIFICATIONS

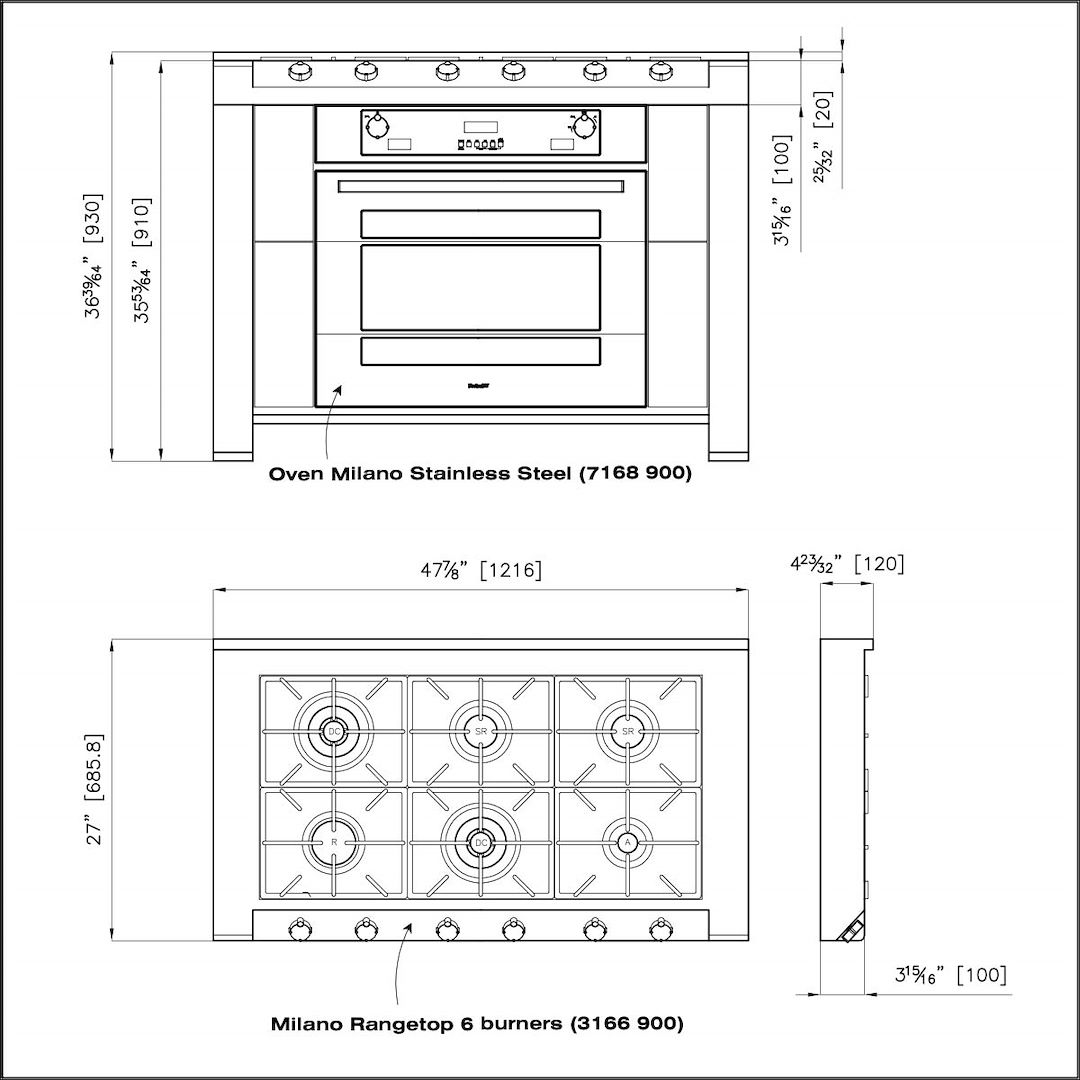

ModelMilano Rangetop 6 burners 48″ - 3166 900
Total power Btu64,200 Btu/h
Technical requirements
Electrical supply120V 60Hz
Gas std settingNatural Gas
LP Gas conversionKit for all burners included
Optional accessories(2x) Cast iron wok support
Notes:For technical details of oven and gas cooktop see below in "Equipment"
